Product Description

UV601 Series HD Video Conference Camera

UV601 Series HD Video Conference Camera offers perfect functions, superior performance and rich interfaces.The features include advanced ISP processing algorithms to provide vivid images with a strong sense of depth, high resolution,and fantastic color rendition.It supports H.265/H.264 encoding which makes motion video fluent and clear even under less than ideal bandwidth conditions.

Key Features

1. Superb High-definition Image
UV601 employs 1/2.8 inch high quality CMOS sensor. Resolution is up to 1920x1080 with frame rate up to 60fps.

2. Various Optical Zoom Lens

UV601 has 12X/20X optical zoom lens for options. 12x zoom lens is with 72.5 ° wide view angle without distortion.

3. Exposure dynamic control algorithm: a unique dynamic exposure control algorithm based on the human eye model, so that the picture exposure is uniform and the sense of layering is strong. Using the industry's most advanced WDR (Wide Dynamic Range) CMOS sensor, combined with exposure dynamic control algorithm processing, it can clearly capture and image all scenes in environments with strong contrast between light and dark (such as backlighting).

4. Low Noise and High SNR

Low Noise CMOS effectively ensure high SNR of camera video. Advanced 2D/3D noise reduction technology is also used to further reduce the noise, while ensuring image sharpness.

.Multiple Audio Output Interfaces

Support HDMI, USB2.0,USB3.0, Wired LAN, Wireless LAN

.Audio Input Interface

Support 8000,16000,32000,44100,48000 sampling frequency and AAC,MP3,PCM audio coding.

5. Wide-range, Quiet and Quick Pan/Tilt Mechanism

By adopting step driving motor mechanism, UV601 camera works extremely quiet and moves smoothly.

6. Multiple Audio/Video compression
Support H.264/H.265 video compression;AAC, MP3 and G.711A audio compression; Support compression of resolution up to 1920x1080 with frame up to 60fps.

7. Low-power sleep function
Support low-power sleep/wake up,the consumption is lower than 400mW under sleep mode.

8. Multiple Preset
Support 255 preset positions (the remote controller is set to 10preset positions).

Technical Specification

Model	UV601E0	UV601E2	UV601F0	UV601F1
1080P PTZ Camera
Optical Zoom	12X f=3.9～46.8mm	20X f＝5.5～110mm	12X f=3.9～46.8mm	20X f＝5.5～110mm
Viewing Angle	6.6°（N）70.4°（W）	3.3°（N）54.7°（W）	6.6°（N）70.4°（W）	3.3°（N）54.7°（W）
Iris Value	F1.8 – F2.4	F1.6 – F3.5	F1.8 – F2.4	F1.6 – F3.5
Image Sensor	1/2.8 Inch High Quality CMOS Sensor	1/2.8 Inch High Quality CMOS Sensor	1/2.8 Inch High Quality CMOS Sensor	1/2.8 Inch High Quality CMOS Sensor
Effective Pixel	2.07M, 16:9	2.07M, 16:9	2.07M, 16:9	2.07M, 16:9
Video Signal	HDMI/SDI		HDMI
	1080P60/50/30/25/59.94/29.97、1080I60/50/59.94、720P60/50/59.94		1080P60/50/30/25/59.94/29.97、1080I60/50/59.94、720P60/50/59.94
	U2		U3
	320x240/352x288/640x360/640x480/704x576/704x480/720x576/800x448/ 800x600/960x540/1024x576/1024x768/1280x720/1920x1080P30/25/20/ 15/10/5		1）U3：1920X1080P60/50/30/25、1280X720P60/50/30/25、960X540P30、 640X360P30、640X480P30、352X288P30、800600P30 2）U3 Compatible with U2：960X540P30、640X360P30、1280X720P10/15、 720X576P50、720X480P60、640X480P30、352X288P30、800600P30
			U2
			320x240/352x288/640x480/704x576/720x480/720x576/640x360/800x448/800x 600/960x540/1024x576/1024x768/1280x720/1920x1080P30/25/20/15/10/5
Digital	10x

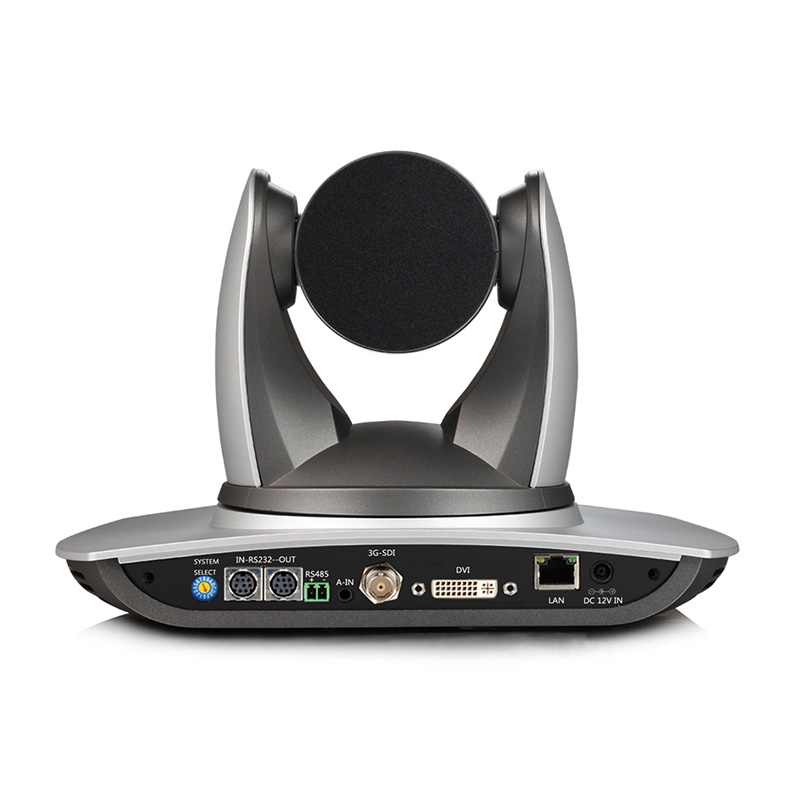

Interface	HDMI, SDI, LAN(POE), USB2.0, A-IN, RS232-IN、 RS232-OUT, RS 485, Rotary Dip Switch, DC12V Power Supply		HDMI, USB3.0, LAN(POE), USB2.0, A-IN, RS232-IN, RS232-OUT, RS485, Rotary Dip Switch, DC12V Power Supply
Accessory	Power supply,RS232 control cable, Remote controller, User manual		Power supply,RS232 control cable, Remote controller, User manual
