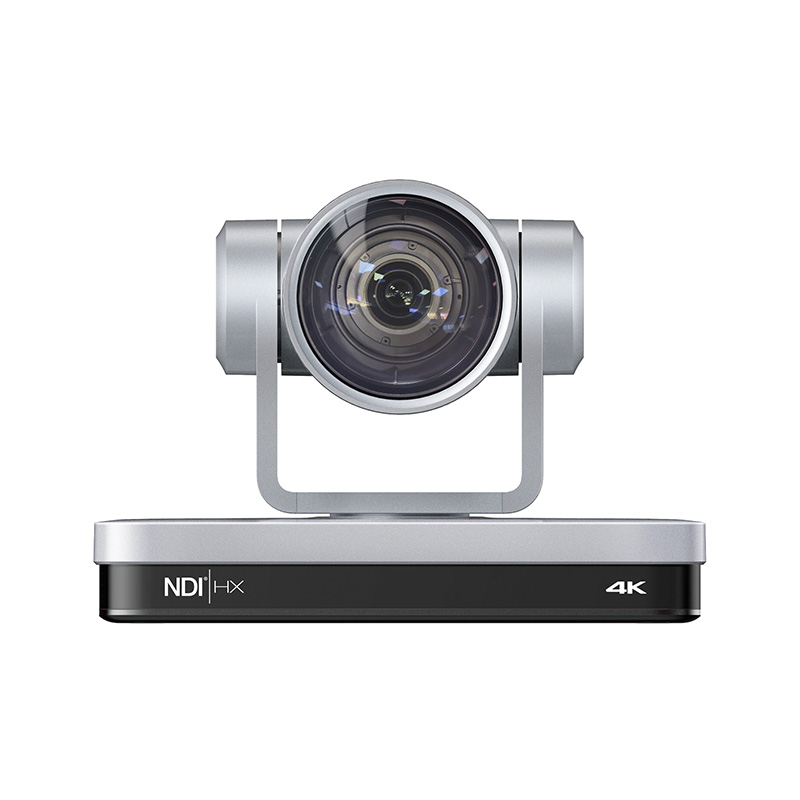

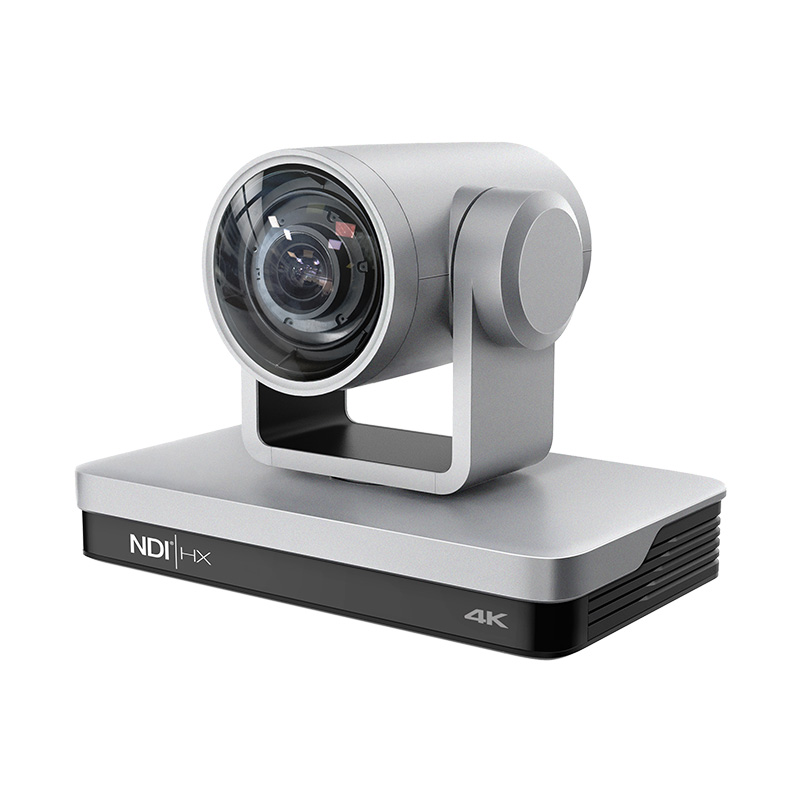

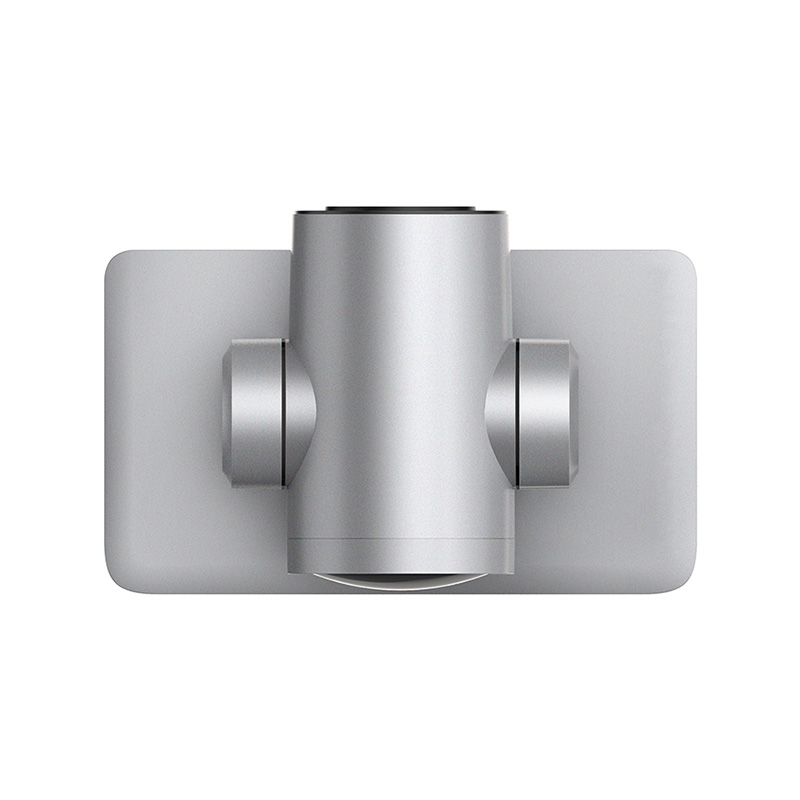

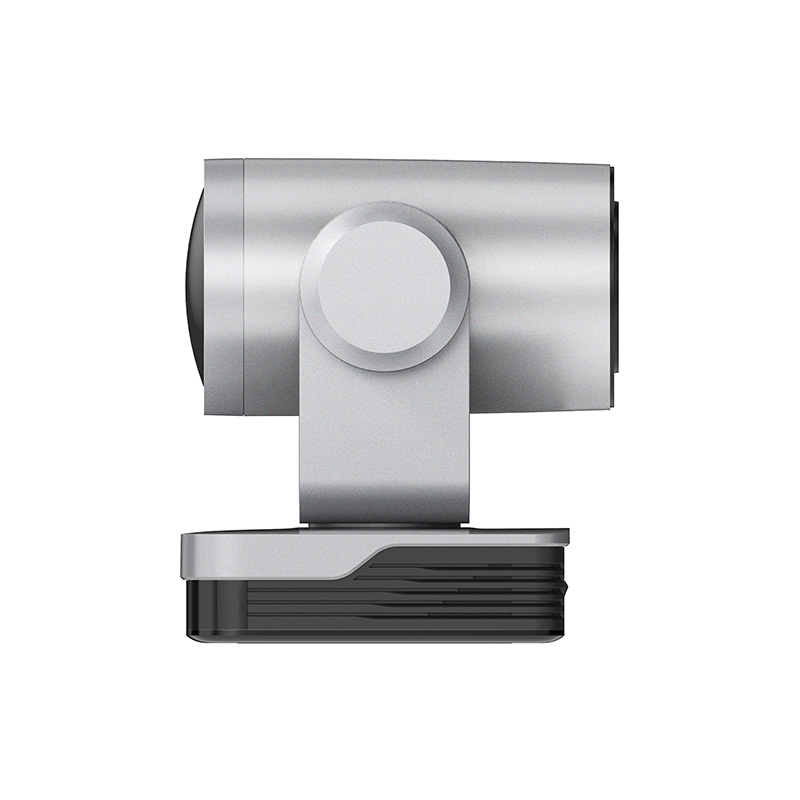

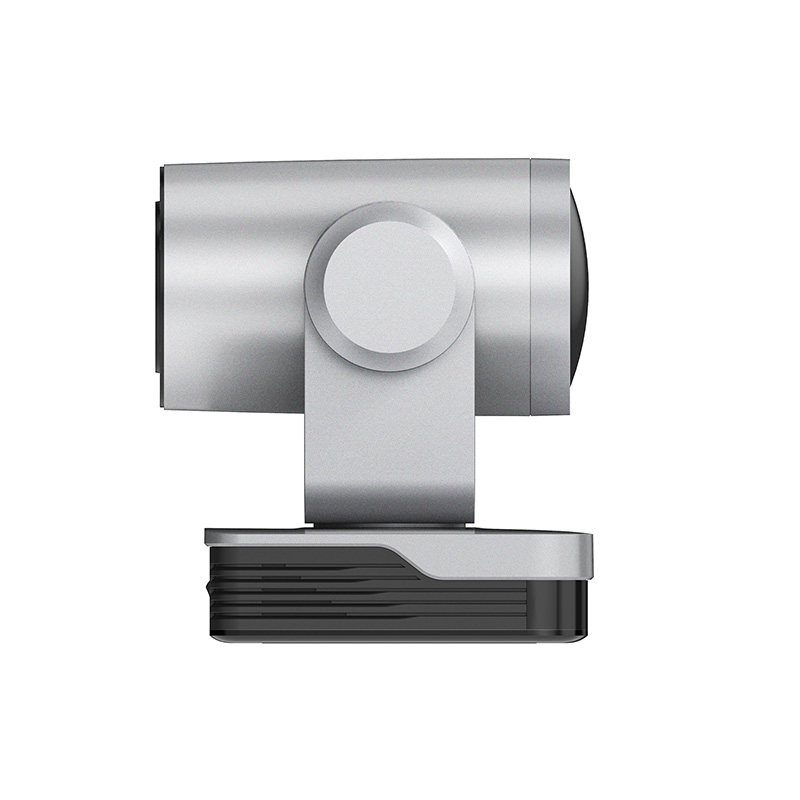

UV430 4K Ultra HD NDI® PTZ Camera

Minrray is China manufacturer & supplier who mainly produces UV430A 4K Ultra HD NDI® PTZ Camera with many years of experience. The UV430A 4K Ultra HD NDI PTZ Camera offers perfect functions, superior performance and rich interfaces.The features include advanced ISP processing algorithms to provide vivid images with a strong sense of depth, high resolution,and fantastic color rendition.

Send Inquiry    PDF DownLoad

Product Description

UV430 4K Ultra HD NDI PTZ Camera


The UV430A 4K Ultra HD NDI PTZ Camera offers perfect functions, superior performance and rich interfaces.The features include advanced ISP processing algorithms to provide vivid images with a strong sense of depth, high resolution,and fantastic color rendition.


Key Features


1. 4K Ultra HD Image:

Built with SONY high quality  CMOS sensor, ,with resolution up to 4K@60fps.


2.Optical Zoom Lens

12x optical zoom lens, with 80.4° FOV without distortion.


3. Leading Auto Focus Technology

Fast, accurate and stable auto focus is achieved with leading auto focus algorithm.


4. Low Noise and High SNR

Super high SNR image is achieved with low noise CMOS. The adoption of advanced 2D/3D noise reduction technology further reduces the noise while ensuring high image clarity.


5. Multiple video output interfaces

With video 4k output from HIMI, USB2.0 and LAN at the same time.


6.Multiple Audio/Video Compression Standard

Support H.264/H.265 video compression over LAN, support MJPG, H.264, YUY2 and NV12 over USB2.0 port , support AAC, MP3 and G.711A audio compression over A-in port.


7. Multiple Network Protocol
Support ONVIF, GB/T28181, RTSP, RTMP ,NDI protocols; support RTMP push mode, which can easily link with streaming media server (Wowza, FMS); support RTP multicast mode, support VISCA control protocol over Network.


8. Multiple Presets
Support up to 255 presets (10 presets by remote controller)


Technical Specification:


Model UV430E0 UV430E2 UV430E3
4K PTZ Camera
Image Sensor 1/2.5 inch SONY   CMOS Image Sensor 1/2.5 inch SONY   CMOS Image Sensor 1/2.5 inch SONY   CMOS Image Sensor
Focus  f=3.85   mm~ 43.06 mm ±5% f=7.1   mm~ 171.95 mm ±5% f=6.91   mm~ 214.64 mm ±5%
Viewing Angle H:7.59˚(N)~   80.4˚(W)
  V:4.6˚(N)~ 50.0˚(W)
H:2.5˚(N)~   59.2˚(W)
    V:1.4˚(N)~ 34.6˚(W)
H:1.98˚(N)~   59˚(W)
    V:1.12˚(N)~ 34.14˚(W)
Iris Value F1.8   ~ F3.56±5% F1.61   ~ F5.19±5% F1.35   ~ F4.6±5%
Effective Pixel 8.51M   16:9
Video Signal HDMI
3840*2160P60/50/25/59.94/29.97、1080P60/50/   30/25/59.94/29.97、1080I60/50/59.94; 720P60/50/59.94
SDI
1080P60/50/30/25/59.94/29.97、1080I60/50/59.94、720P60/50/59.94
USB2.0
MJPG:3840*2160/1920*1080/1280*720 /1024*768   /1024*576/800*600/720*576/720*480/704*576/640*480 /640*360   /352*288/320*240P30
    H264:3840*2160/1920*1080/1280*720 /1024*768   /1024*576/800*600/720*576/720*480/704*576/640*480 /640*360   /352*288/320*240P30
    YUY2:800*448 /720*480P25、640*360 /432*240P30
    NV12:800*448P25、640*480 /640*360 /432*240P30
Optical Zoom 12x 25X 31X
Digital Zoom 15x 15x 15x
AI Real-time Tracking, Zone Tracking
Back Panel HDMI、SDI、LAN(POE)、USB2.0、A-IN、RS232-IN、RS232-OUT、RS422(Compatible with RS485)、Rotary Dip Switch、DC12V Power Supply、Power Switch
Accessory  Power Adapter, RS232 Cable, USB2.0 Cable, Remote Control, User Manual
