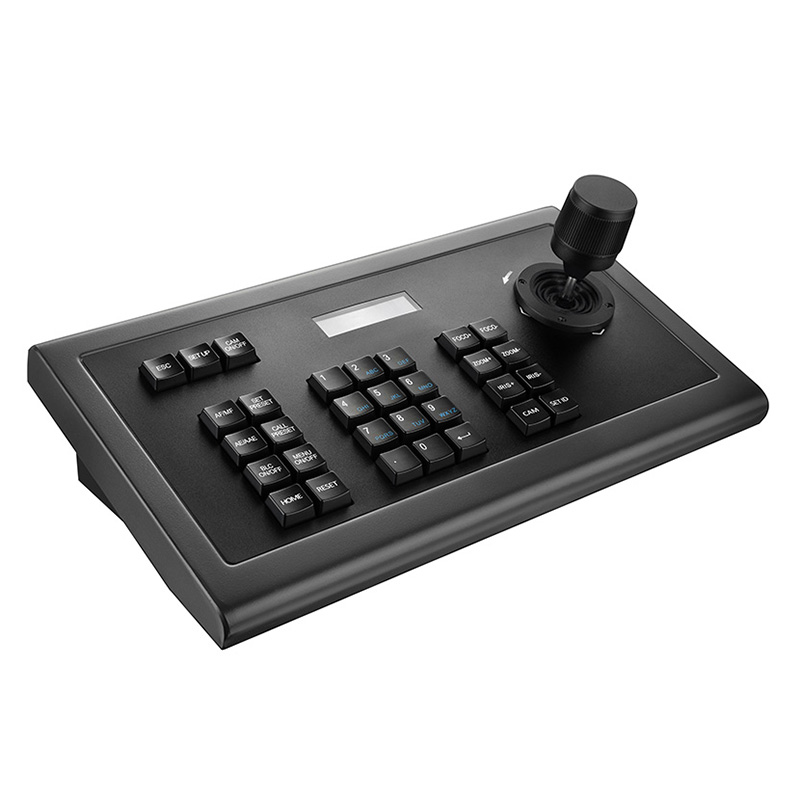

Joystick keyboard KBD1010 adopts RS485, RS422, RS232 Multiple Interface Control Signals. Support to connect up to 255 cameras. The longest communication distance is up to 1200M (0.5MM twisted pair).
Specification of Joystick Keyboard KBD1010
|
Parameter / Model |
KBD1010 |
|
Communication Mode |
RS485 Half duplex, RS422 Full duplex, RS232 Serial Port |
|
Communication baud rate |
2400bps, 4800bps, 9600bps, 19200bps |
|
Interfaces |
5PIN; RS232 |
|
Joystick |
Three-dimensional (Control: up, down, left, right, rotate) |
|
Display Mode |
LCD Blue Screen Display |
|
Power Supply |
DC12V±10% |
|
Power Consumption |
6W MAX |
|
Working Temperature |
-10℃～50℃ |
|
Storage Temperature |
≦90%RH(No frosting) |
|
Dimensions |
320mm（L）X179.3mm（W）X106.4mm(H) |
Dimension(unit：mm)
