Minrray BC420T has perfect functions, superior performance and rich video output interfaces; Featuring with advanced ISP processing algorithms, offering vivid and high resolution video with a strong sense of depth and fantastic color rendition. It supports H.264/H.265 encoding which makes motion video more fluent and clear under low bandwidth conditions.
l 4K Resolution: 1/2.8 inch high quality CMOS sensor. Resolution is up to 3840×2160 with frame rate up to 30 fps.
l Optical Zoom Lens: 12X optical zoom lens.
l Leading Auto Focus Technology: Fast, accurate and stable auto focusing technology.
l Laser Rangefinder: Assist focusing, make the focusing speed faster and more stable (effective distance 4 meters).
l Low Noise and High SNR: Super high SNR image is achieved with low noise CMOS. Advanced 2D/3D noise reduction technology further reduces the noise while ensuring high image clarity.
l Multiple video output interfaces: Simultaneously output audio and video signal via HDMI, USB3.0 and LAN. LAN support POE power supply.
l Multiple Video Audio Compression Standards: Support YUY2, MJPEG、H.264, NV12 video encoding formats, and H.264 support 3840*2160 resolution. Support AAC, MP3 and G.711A audio compression, 8000, 16000,32000,44100,48000 sampling frequency.
l Audio Input: Support AAC, MP3, G.711A audio coding, AAC, MP3 coding support 32000, 44100, 4800 sampling rate.
l Built-in Gravity Sensor: Support PTZ auto-flip function and easy installation.
l Multiple Network Protocol: Support ONVIF, GB/T28181, RTSP, RTMP protocols; Support RTMP push mode，easy to be connected to streaming server (Wowza, FMS); Support RTP multicast mode; Support network full command VISCA control protocol.
l Control Interface: RS422 compatible with RS485, RS232-IN, RS232-OUT, RS232 (cascade connection)
l Multiple Control Protocol: Support VISCA, PELCO-D, PELCO-P protocols; Support automatic identification protocols.
l Quiet Pan / Tilt Movement: With high accuracy step driving motor, camera can pan / tilt extremely quiet and smooth.
l Multiple presets: Up to 255 presets (10 presets via remote control).
l IR / Wireless Remote Control: Users can choose IR remote control or wireless remote control according to different conditions. 2.4G wireless remote control is not affected by the angle, distance or infrared interference. Far-end-control is also available.
l Multiple Application: Online-education, Lecture Capture, Webcasting, Video conferencing, Tele-medicine, Unified Communication, Emergency command and control systems, etc.
Specification:
| Model | BC420T | |||
| 4K Ultra HD PTZ Streamng Camera | ||||
| Zoom | 12X Optical Zoom | |||
| FOV | H：7.6°（N）～80.5°（W） | |||
| Iris Value | F1.8 ～ F3.6±5% | |||
| Image Sensor | 1/2.8 inch high quality CMOS sensor | |||
| Effective Pixel | 8.51M, 16：9 | |||
| Video Signal | HDMI | |||
|
4KP30、4KP25、1080P30、1080P25、1080P29.97 “P”represent（Progressive）scanning image format “i”represent（interlaced）scanning image format |
||||
| USB3.0 | ||||
| YUY2/NV12: 1920×1080/1080×1920/1280×720/720×1080P30/25/20/15/10/5fps | ||||
| MJPEG/H.264: 3840×2160/2160×3840/1920×1080/1080×1920/1600×896/1280×720/720×1280P30/25/20/15/10/5fps | ||||

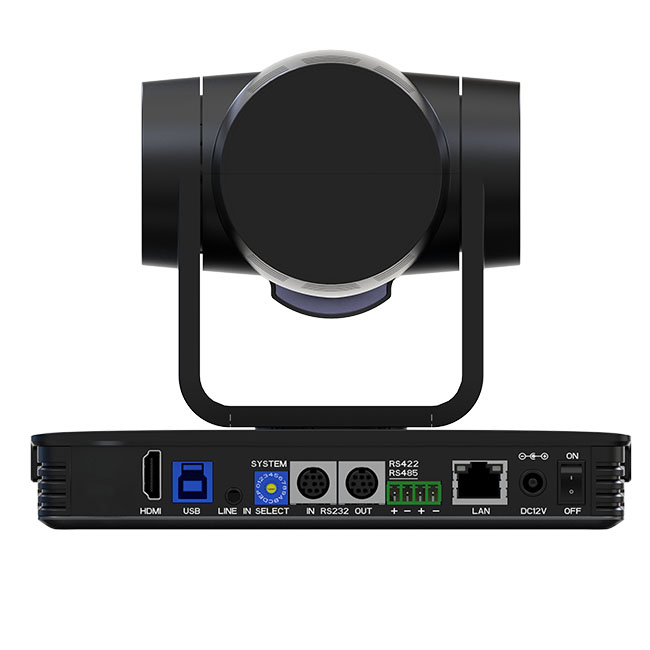

| Interface | HDMI、LAN(POE)、USB3.0（TypeB compatible with USB2.0）、A-IN、RS232-IN、RS232-OUT、RS422（Compatible with RS485）、Rotary Dip Switch、DC12V Power Supply、Power Switch | |||
| Accessory | Power Adapter, RS232 Cable, USB3.0 Cable, Remote Control, User Manual | |||
